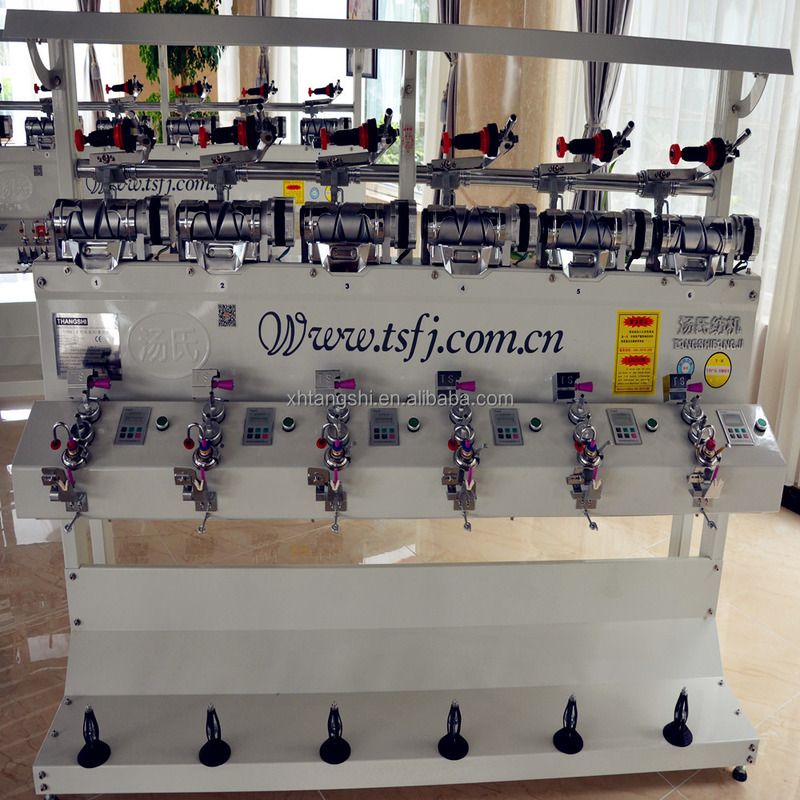

Winding Chats New Style Winding Machine Manufacturer

1 Set
MOQ
Winding Chats New Style Winding Machine Manufacturer
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Condition: New
Application: Winding Yarns
Automatic Grade: Semi-automatic
Production Capacity: HIGH SPEED
Memory Capacity: 999999m
Model Number: TS008M
Voltage: 220v
Power: 90w 50HZ
Dimension(L*W*H): 1880*620*1500mm
Weight: 200kg
Warranty: 12 Month
After-sales Service Provided: Engineers available to service machinery overseas
Certificering: ISO9001:2008 / CE
Name: high speed winding machine
Basis informatie
Certificering: ISO9001:2008 / CE
Model Number: TS008M
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Standard export cases
Supply Ability: 500 Set/Sets per Month
Productomschrijving

Exhibition

Certifications

Product Description

Application:
TS008M High Speed Tight(Hard) winding machine, it’s mainly for the yarn After Dyeing rewinding or yarn rewinding using cone to cone directly, suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.

Equipments:
Inverter(MITSUBISHI Brand), Drum(Superplastic Alloy), Motor(Ningbo), Controller(HangZhou)

Parameters:

1. Drive: every spindle per motor

2. Winding speed: 300-1000 M/min

3. Has function of auto stop when yarn break.

4. Package Dia≤ 250mm; Take-up Traverse: 150mm;

5. Each spindle with length counter;

6. Advanced control panel;

Technical parameters:

Bobbin type:

1"(170mm)

Layout

can be 2,4,6,8,12~108 spindles

Power Supply

220V 50/60HZ

Driving

Every spindle per motor

Power Comsumption

0.09KW/spindle

Take-up package

Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15

Yarn tension and waxing device

Every spindle has a yarn tension and waxing device

Auto Stop Device

Each spindle install auto stop device

Cleaner device

Every spindle has a Mechanical Knife yarn cleaner

Electronic Yarn Cleaner

Optional installed

Air Splicer

Optional installed

Blower cleaner

Optional installed

Lighting System

contains

Dimensions

L 1880 x W 620 x H 1500 mm
